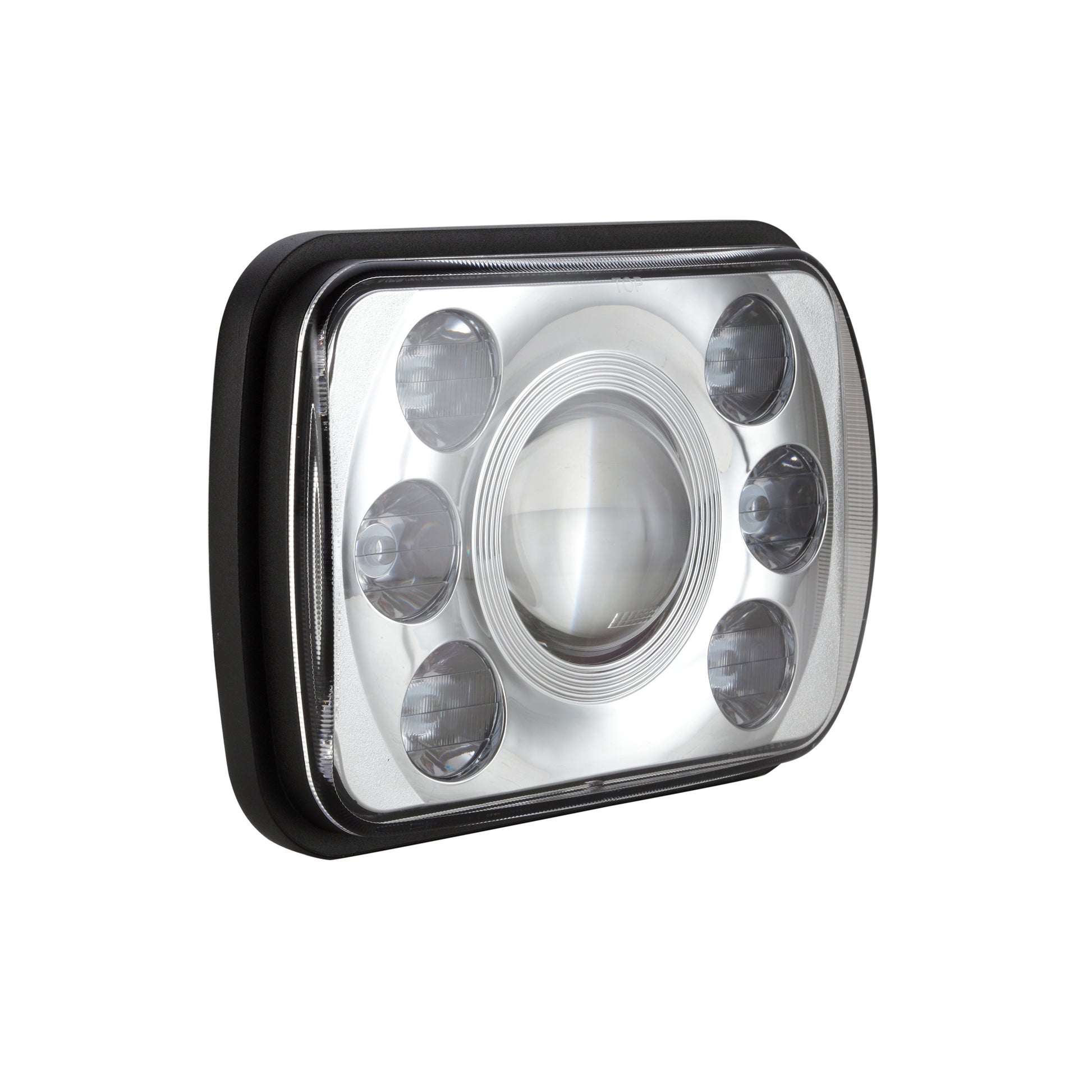

Ignite IHL200SC 7"X5" LED Headlight 9-36V High / Low Beam Chrome Face 7 LEDs 65W

Additional Information

• Ignite Rectangle LED HeadLamp 9 - 36 Volt 65 Watt
• 200mm x 142mm or 7" x 5" - BLACK Fascia
• High / Low Beam and Position Lamp
• 6 x 10 Watt High Intensity LumiLEDs LED's for Position Lamp and High Beam
• 1 x 5 Watt High Intensity Philips LED for Low Beam
• High Beam: 3,900 Raw Lumens and 3,315 Effective Lumens and 6,500K
• Low Beam: 1,800 Raw Lumens and 1,530 Effective Lumens and 6,500K
• Current Draw: 4.1amp @ 12 Volt and 1.8amp @ 24 Volt
• Proprietary Polycarbonate TIR Optical System Reflector Technology for High Beam and Position Lamp.
• Lexan Polycarbonate Lens and Reflectors
• Integrated Electronic Thermal Management (ETM)
• Black Powder coated Extruded 6063 Aluminium Housing with integrated Heat-Sink and Pressure Equalising Vent
• Replaces Headlights, either Semi Sealed or Sealed Beams
• 150mm Lead with H4 Connector
• Over and Under Voltage Protection
• Reverse Polarity Protection
• UV, Water and Shock resistant
• 50,000 Hours LED Lifespan
• ECE R112, R7, DOT, SAE and CE Approved
• IP68 and IP69K Rating
• Environment Temperature: -40°C ~ +60°C
• Weight: 1.19kg
